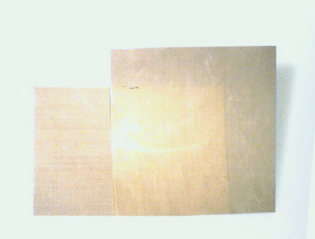

PTFE coated fiberglass cloth
| PTFE coated
fiberglass cloth is a product made from alkali-free fiberglass cloth
impregnated into suspended PTFE emulsion. It is a new composite material,
which possesses high properties and many uses. It can be used from-196¡æ to 300¡æ. Other main properties are: corrosion of strong acid and alkali, and organic liquid resistance, low friction coefficient, light transmissivity from 6% to 13%. excellent weatherability used in outdoors for 20 years. PTFE coating fiberglass fabric is widely used with excellent performance in the fields of aviation, electronics, food, medicine, clothing and it is also used in anti-corrosion clad, inner liner and pad, adhesive resistance conveyer belt, high frequency copper-clad laminates, architectural membrane, insulation material, microwave drying-conveyer belt, flexible |
 |
compensatory, friction material etc.
Physical
and Chemical Properties
|
Style
|
Thickness(mm)
|
Bursting
Strength (Mpa) |
Breaking strengthN/50min
|
CombustibleMa
tterContent(%) |
Width(cm)
|
|
|
Warp Fill
|
||||||
|
EWP180
|
0.18¡À0.02
|
¡Ý1.5
|
¡Ý1250
|
¡Ý850
|
¡Ý30
|
90¡«127
|
|
EWP280
|
0.28¡À0.03
|
¡Ý1.6
|
¡Ý1750
|
¡Ý1750
|
||
|
EWP550
|
0.55¡À0.04
|
¡Ý1.7
|
¡Ý2500
|
¡Ý2500
|
||
 |
