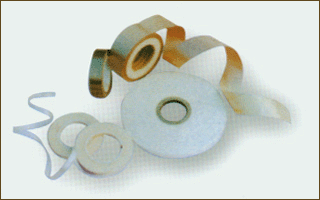

Fireproof mica paper tape

1. Introduction

Fireproof mica paper tapes possess excellent
flexibility at normal condition and a little sticky.
They are easy to wind up the conductor of cable
tightly, having high mechanical strength, high
mica content and excellent electric performance.
The security cables wrapped with fireproof
mica paper tape possess the reliable performance
of flame-resistant in conformity with the requirement
of The Characteristic of Flame-Resistant for Cable,
IEC Publication 331 and possess the performance
of excellent waterproof.

2. Product model

Type of mica tape	Mica paper type	Reinforcement type
5460-1D	Calcined moscovite mica paper	One face reinforced
5460-1S	Calcined moscovite mica paper	Two face reinforced
5461-1D	Moscovite mica paper	One face reinforced
5461-1S	Moscovite mica paper	Two face reinforced
5461-3D	Phologipite mica paper	One face reinforced
5461-3S	Phologipite mica paper	Two face reinforced

3. Specification

Thickness
The thickness is conformity with the Table 2

Product designation		Two face reinforced	One face reinforced
Nominal thickness		0.14-0.18	0.08-0.11
Allowedtolerance	Average	±0.02-0.03	±0.02
Allowedtolerance	Individual	±0.03-0.04	±0.02

Width
The width of tape discs or roll are within 6-860mm, can be prepared according to the requirement of the customer. The best choice is 6,8,10,12,15,20,25,30,40,50mm. The allowed tolerance of width is ±1.0mm in width within 6-20mm, ±2.0mm in the width within 20-500mm, and ±5.0mm in the width within 500-860mm.
Length
The length of tape discs or roll are specified with outside diameter of the discs or roll. The outside diameter of the discs or roll normally is 150±5mm - 200±5mm, or the length of tape discs or roll will be according to the agreement between the supplier and the purchaser. The number of joints of each tape discs or roll are not more than 2, the shorter one shorter one should not be less than 80m. Jointed tape discs or roll shall be label clearly.

Component part of fireproof mica tape (See in Table 3)

Product type	Glass fibre clothg/m2	Binder content%	Mica content%	Volatile%
5460-1D	18±2	≤25	≥60	≤1.0
5460-1D	20±2		≥60
	2 x (20±2)		≥55
5461-1D	18±2		≥60
5461-1D	20±2		≥60
	2 x (20±2)		≥55
	20±2	≤17	≥60
	2 x (20±2)	≤17	≥55
Using other weight of Glass fibre cloth be permitted

Mica paper tapes are compactly wound on the core, the diameter usually adopted is 40±2mm,
50±2mm, 76±2mm, or according to the requirement of the customer.

Electric strength of power frequency(normal conditions)
One face reinforced: ≥10Mv/m, Two face reinforced: ≥8Mv/m
g. Tensile strength in machine direction
One face reinforced: ≥60N/10mm, Two face reinforced: ≥100N/10mm

Volume-resistivity
One or two face reinforced: ≥1.0x10 Ω.m

Mica Paper Tape for flame-resistance security cable reinforced only in one
face is rolled with the mica surface toward the outside, or according to the requirement of the purchaser.

Transportation
Avoid damage, wet and direct sunshine during the transportation

Storage
The products should be stored in the dry and clean place with the temperature under 35℃ and far from heating source and direct sunshine.
The properties can be promised to keep for six months before use after delivery.

4.Packing

Each disc or roll packed in sealed plastic bag,then packed in paper box, then packed in wooden case.
