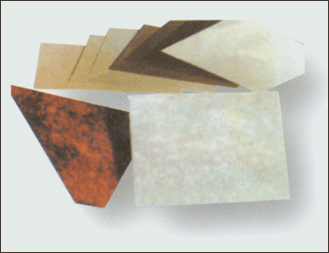

耐热云母板Mica
plate for Heating Equipment (HP5)
本公司生产的耐热云母板是采用优 质云母原料，进口有机硅树脂经烘 熔压制而成的高温绝材料。广泛用 于多士炉，风筒，暖风机等电器产 品。白云母板的工作温度为500℃； 金云母板的工作温度为800℃；柔软 云母板则可卷曲成直径为10mm的圆筒。  Our product is made by selected mica material, imported silicone and pressed under high temperature. It is heat-proof with high mechanical strength and excellent properties for electric insulation under high temperature. Main application are : Toasters, Hair Dryers, Irons, Washers and Spacers for high temperature requirement. Working temperature are : Muscovite : 500℃. Phlogopite : 800℃. The flexible mica plate can be rolled with a diameter of 10mm. |
主要性能指标
Main Technical Characteristics:
|
产品代号 Symbol
|
HP5
|
HP5(J)
|
HP5(R)
|
|
|
云母材料Mica material
|
白云母Muscovite
|
金云母 Phlogopite
|
白云母 Muscovite
|
|
|
粘合剂 binder
|
有机硅树脂 Silicone
|
|||
|
厚度Thickness(mm)
|
0.10-15
|
0.10-15
|
0.15-0.25
|
|
|
厚度误差
ThicknessTolerancemm |
平均 Average
|
±0.03-±0.05
|
±0.03-±0.05
|
±0.03-±0.05
|
|
各点Individual
|
±0.05-±0.08
|
±0.05-±0.08
|
±0.05-±0.08
|
|
|
密度Density(g/cm3)
|
2.05-2.15
|
2.05-2.15
|
1.90-2.00
|
|
|
加热减量Heating loss %
|
≤1.00
|
≤0.60
|
≤2.00
|
|
|
弯曲强度 Flexural strength kgf/mm2
|
≥23
|
≥20
|
|
|
|
击穿强度 Dielectric strength kv/mm
|
>25
|
>20
|
>15
|
|
|
高温绝缘电阻 Insulation resistance MΩ
|
200-600
|
100-600
|
|
|
|
标准尺寸 Standard size mm
|
1000x600 1000x1200
|
|||
 |
